Setting up laser marking machine software is relatively simple. Before using a laser marking machine, you need to complete some basic configurations. However, many users may face issues with after-sales support when purchasing uncertified or low-quality products. Below, we’ll provide a free guide on how to set up laser marking machine software step by step.

1. Set the Laser Type

• Press F3 on the keyboard or open the parameter settings interface in the software.
• Navigate to Laser Control, then ｓｅｌｅｃｔ the type of laser you’re using.
  • For example, if you’re using a fiber laser, choose Fiber. If you’re using a CO2 laser, ｓｅｌｅｃｔ CO2.

• Save the settings after selecting the appropriate laser type.

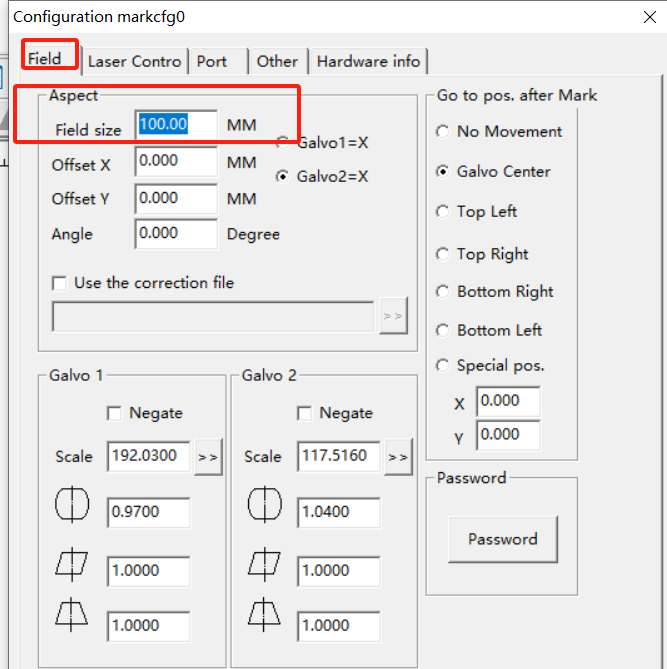

2. Set the Marking Area or Workspace

• Again, press F3 on the keyboard or access the parameter settings interface in the software.
• Go to the Workspace Settings section.
• Adjust the workspace dimensions according to the field lens size of your machine.

  • For instance, if the field lens size corresponds to a working area of 110x110mm, set the workspace to 110mm.




3. Set Laser Parameters

• Laser parameters are located in the bottom-right corner of the software interface (e.g., JCZ software like EzCAD).
• Typically, you only need to adjust Power and Speed:
  • Higher power results in deeper and stronger marking.
  • Higher speed makes the marking process faster.

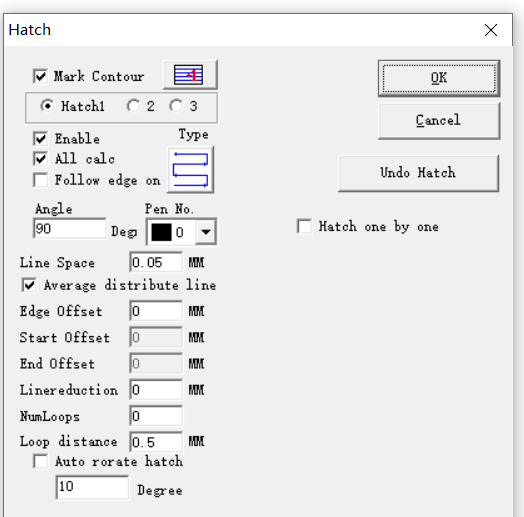

4. Text Filling

• Filling directly affects the marking result. When marking text, you usually need to set the filling options.
• Configure the filling type based on your requirements. Pay particular attention to the line spacing:

  • A common setting for line spacing is 0.05mm.




Final Steps

After completing the above steps, your laser marking machine should be ready to operate. However, since each machine may have unique configurations and adjustments, you might encounter additional issues. JunChuang Laser provides various solutions for common problems, which you can refer to as needed.

With these settings, you can confidently set up and use your laser marking machine effectively.
